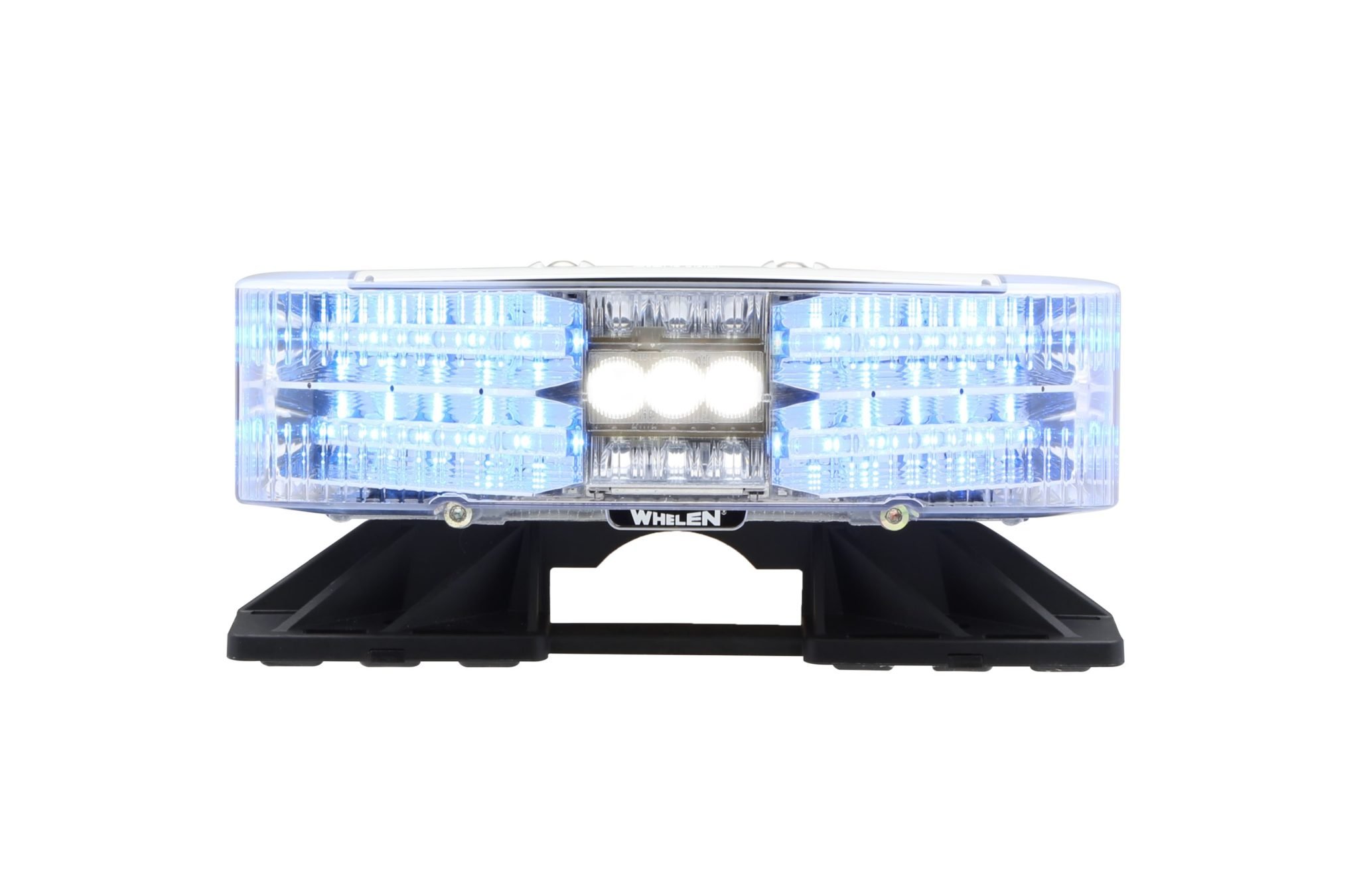

Whelen Freedom® IV Lightbar
Whelen’s Freedom® IV Series features advanced Linear Super-LED® optics, DYAD™ two level technology, and 360° of contiguous light.
New WeCanX® models available
Whelen’s Freedom® IV Series features advanced Linear Super-LED® optics, DYAD™ two level technology, and 360° of contiguous light.
New WeCanX® models available
Whelen’s Freedom® IV Series features advanced Linear Super-LED® optics, DYAD™ two level technology, and 360° of contiguous light.
New WeCanX® models available
FEATURES
Standard Model:
Low profile aluminum extrusion
Clear outer domes with clear dividers
Available in permanent mount with passenger side cable exit or mode specific driver side option
Color domes for center and end sections with optional alley window
Hard-coated lenses
Rota-Beam™ Models:
Freedom IV F4R Rota-Beam Series Super-LED Lightbars, includes four half corner Super-LED beacons
Designed without any moving parts or motors, for long life reliability
DYAD Models:
Newly designed corner modules blend light together for 360° of contiguous light
Plug & Play into Whelen or vehicle manufactured controllers*
Point to point wiring between the I/O board and each lighthead
Collimator™ optic design
Advanced thermal design
Aluminum top
Center dividers with LIM (liquid injection molded) seals
Hard-coated lenses
* WeCan models only
SPECIFICATIONS
Voltage 12 VDC
Amps 2.2 amps (average)
*Electronics 100% solid-state
Technology Linear Super-LED
Certifications SAE Class 1
Warranty Five year warranty
MODELS
K4W4****
44.5", 4 Red, Blue, Amber and/or White, Single or Two Color Over/Under Modules
K4W8****
49.25", 4 Red, Blue, Amber and/or White, Single or Two Color Over/Under Modules
K4W2****
55", 4 Red, Blue, Amber and/or White, Single or Two Color Over/Under Modules
K4W0****
60", 4 Red, Blue, Amber and/or White, Single or Two Color Over/Under Modules, Freight Surcharges May Apply
ACCESSORIES
Color modules
Amber
Blue
Red
White
Flash Patterns
Multiple
